Roof tile

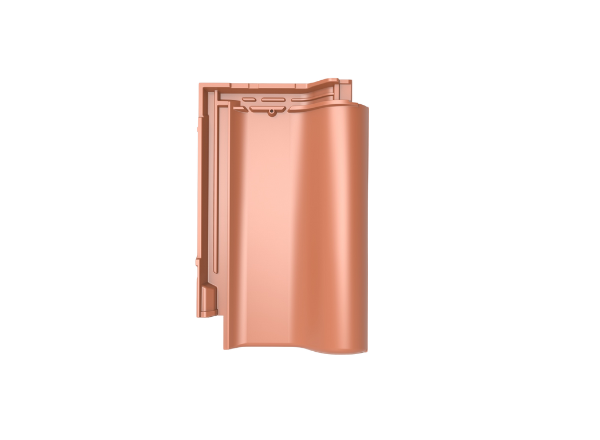

Ideal +
New tile model
-
Description
IDEAL + is a new tile model from the NEXE tile family. It is characterized by excellent functionality, accurate dimensions and a double fold. The most important advantage of using IDEAL + tiles compared to similar clay tiles is its constructive solution, which enables sliding battening of the roof plane. In addition to the basic IDEAL + tile model, we also offer special tiles for rounding the roof plane: gutter, left end tile, right end tile, ventilation tile and snow guard.
-
Specifications
- Tested according to the SRPS EN 1304 standard
- Tile weight 2.8 - 3.0 kg
- Individual dimensions approx. 415x260mm
- Maximum cover length approx. 360mm
- Cover width approx. 220mm
- The recommended batten spacing is approx. 31.5cm - 35.5cm
- Minimum roof slope 22°
- Consumption per 1m2 of roof 12.5 - 14.7 pcs
- Packaging 256 pieces on a pallet (packaging weight approx. 775 kg)
- Package dimensions 1133x850mm
- Produced and delivered by: Polet a.d. Novi Bečej, Republic of Serbia
